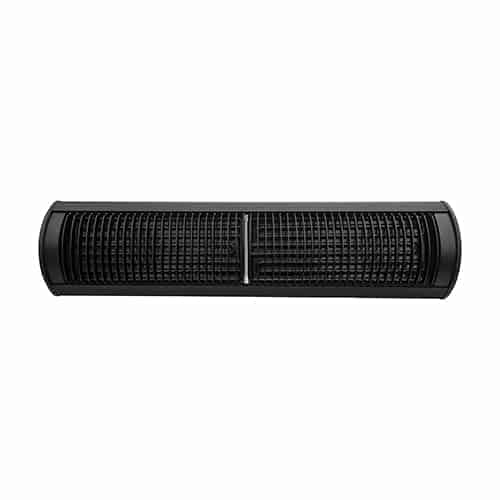

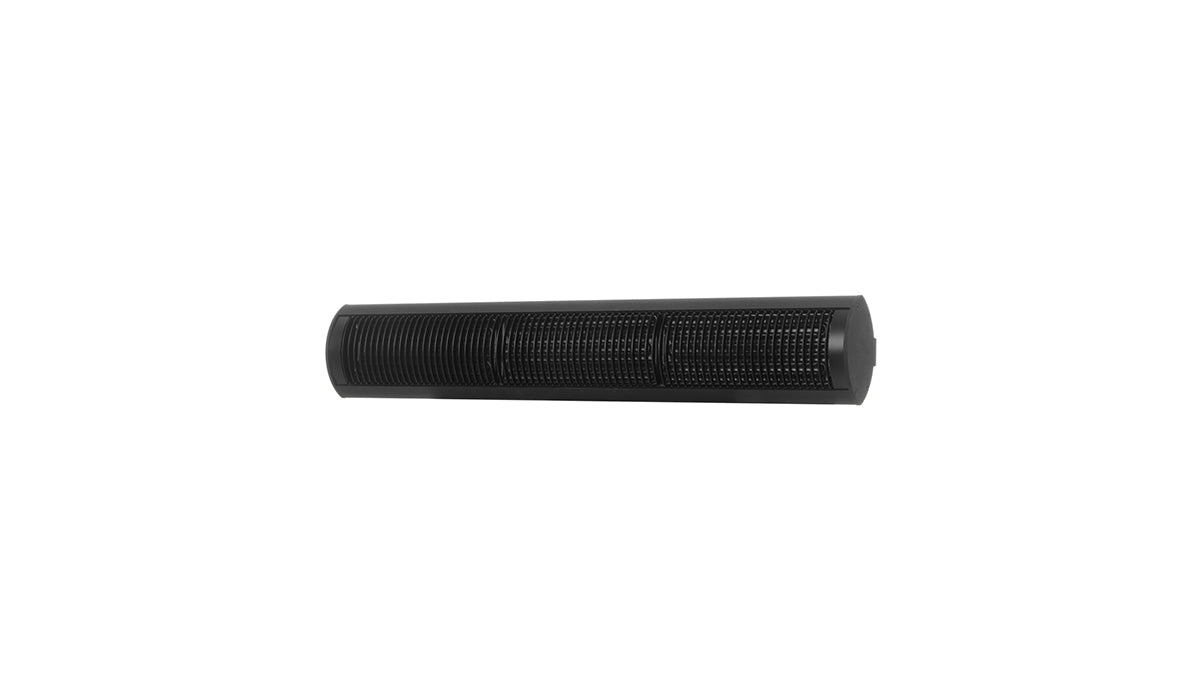

Aspect XL 1300W / 1950W

Description

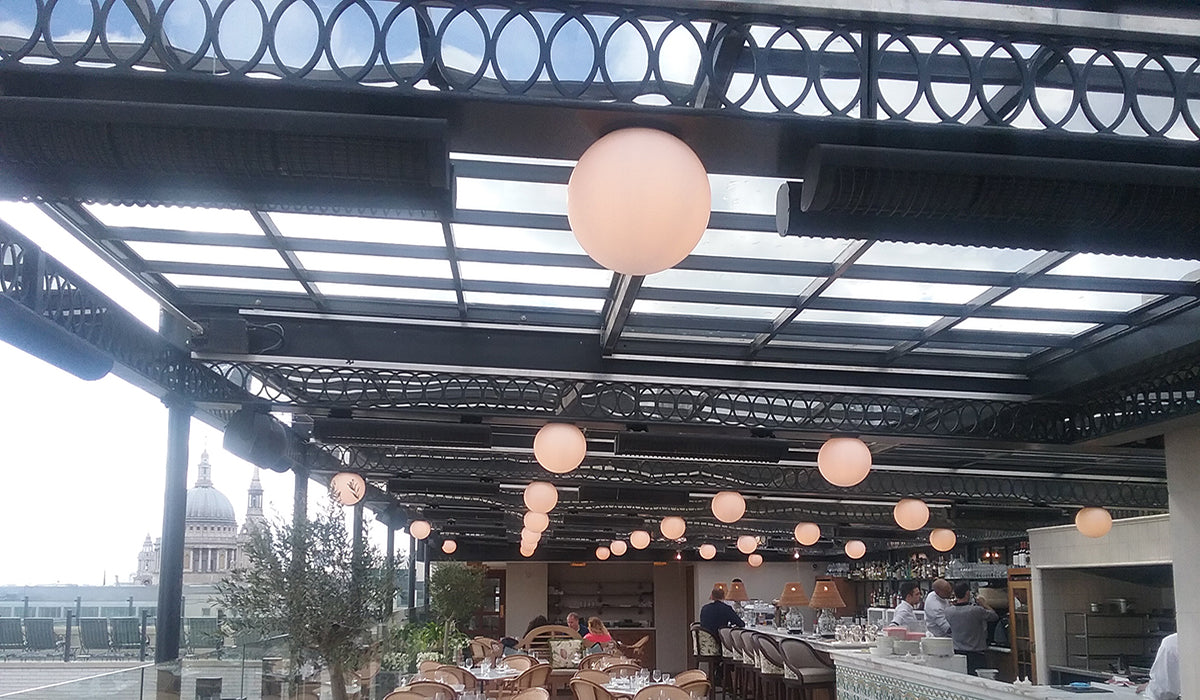

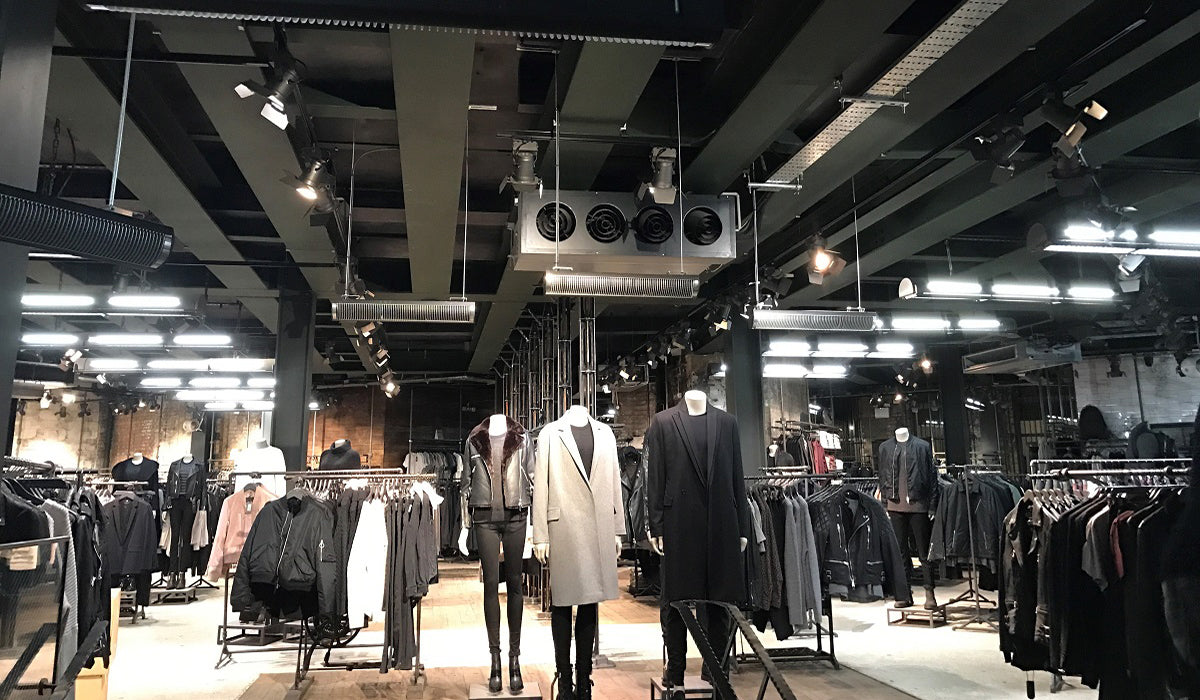

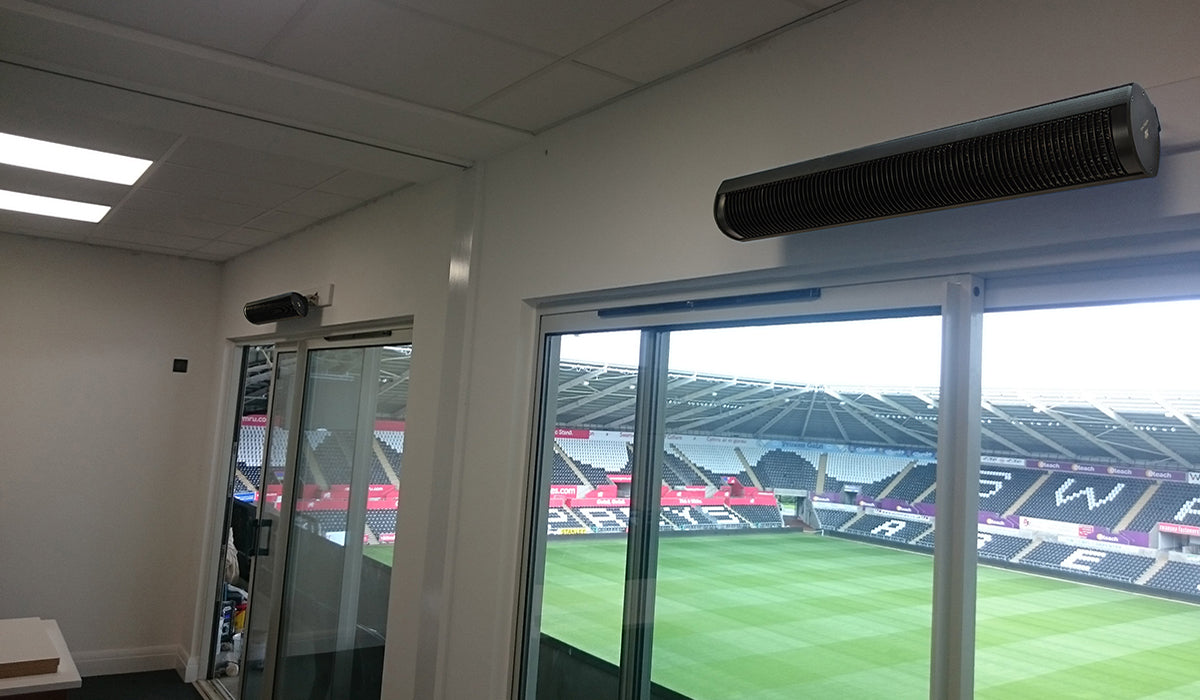

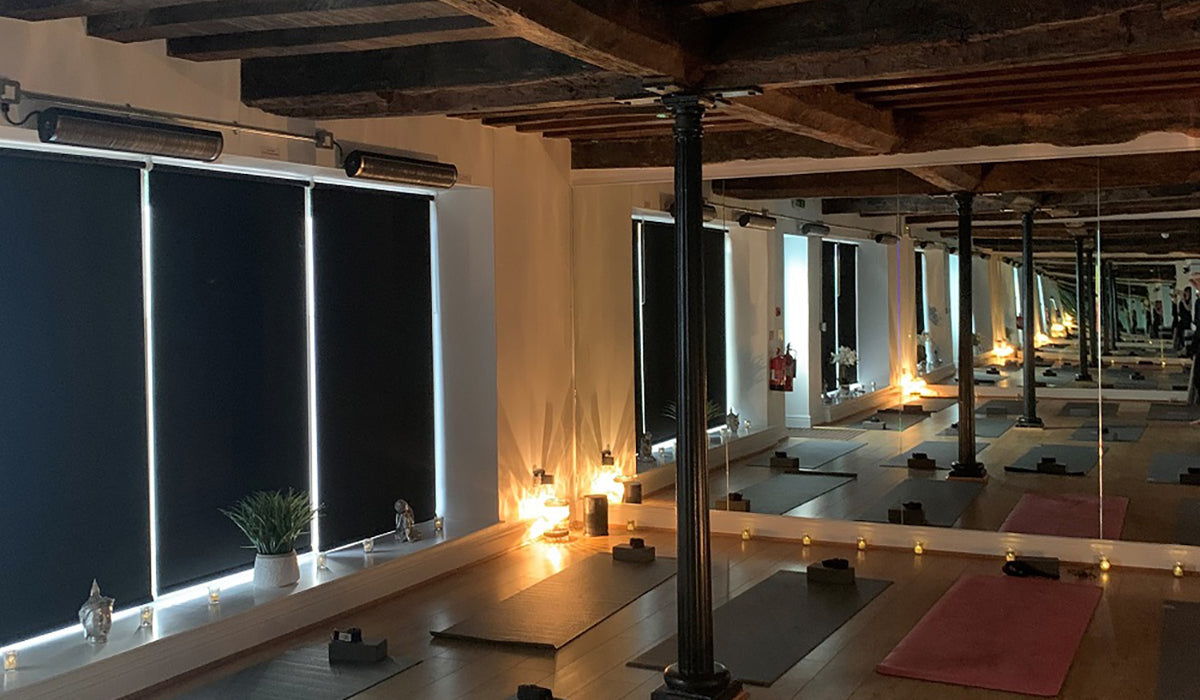

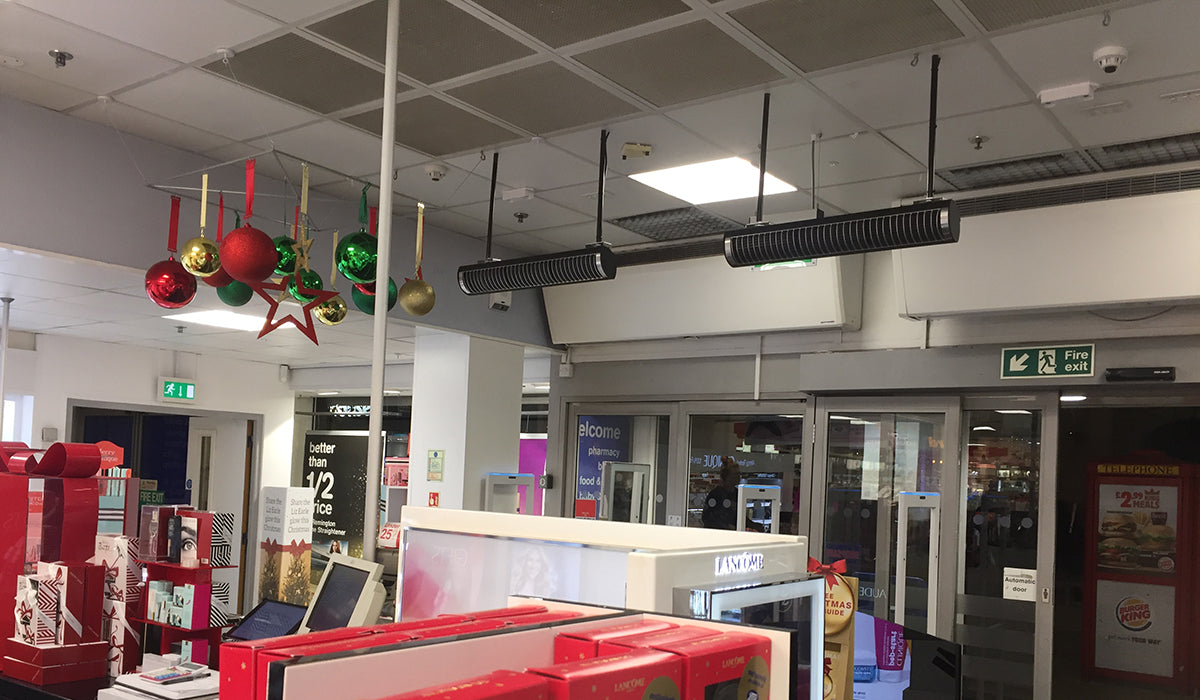

The Aspect XL is an energy-efficient, space heating solution for indoor space heating and rooms that open to the outdoors. It is particularly suited for those applications where an aesthetically pleasing comfort heating solution with zero light is preferred. Office reception areas, shops, hotels, churches, restaurants, public halls, covered patios or terraces and anywhere within the public eye.

Utilising specially developed ceramic emitters in a high quality extruded and anodised aluminium body. The groundbreaking design of the Aspect XL, including triple reflectors, projects far infrared heat forwards. The result is greater efficiency, a wider spread and throw and increased comfort levels. Zero light and featuring a sleek, discreet black body and grill, the Aspect XL performs as good as it looks. Other features include:

Please note: In areas with air movement/wind the directional Far Infrared spread may reduce by 1/3 to ½. In these areas we recommend mounting at the lowest height and proportionally increasing the number of heaters or for colder, windier situations, choosing a heater from our new middlewave Sunset range. Your Herschel dealer can advise.

The unit is protected against water ingress (protection level IPX4). When when used outside it must be installed in a permanently covered, well-sheltered outdoor area (always refer to installation instructions) and is best for warmer climates.

Key Features:

• Zero light designer heater
• High power black ceramic elements
• Black powder-coated aluminium
• Manufactured in Europe
• Indoors & rooms that open outdoors
• Wall mount only

Technical Specifications

Heater Type: Fixed electric high temperature infrared heater

Surface: High quality extruded and anodised aluminium body

Colour: Black

Cable Length: 1.5m

Plug: No Plug

Voltage: 230V 50Hz

Protection Class: IPX4

Installation: Wall-mounted only

Heating Element: 2 or 3 ceramic longwave Infrared emitters

Reflector: Aluminium

Warm-up Time: <5 Minutes

Useful Wavelength: 3 - 10µm

Recommended mounting at 2.3-2.5m and must be installed under a cover or canopy extending at least 2m (when outdoors). Refer to the installation instructions.
The heater will directly warm people and objects within the Heated Zone (note: air movement may reduce area coverage). Within enclosed areas the thermal mass of the building will also be heated within the entire zone. Dependent upon the property age/type, insulation levels, number of heaters used and running times this will increase the ambient temperatures. For larger commercial projects or where different mounting heights are required we would always recommend Herschel carry out a survey or detailed desktop assessment.
Please note: In areas with air movement/wind the directional Far Infrared spread may reduce by 1/3 to 1/2. In these areas we recommend mounting at the lowest height and proportionally increasing the number of heaters.

Quality & Safety

Certifications

EU/ UK Electrical Safety: IEC60335-1; 60335-2-30; EN62233

Restriction of Hazardous Substances (RoHS): IEC62321

Ecodesign Compliance: ErP Regulation (EU) 2015/1188 and Supplement (EU) 2016/2282 (Lot 20) when using Herschel Controls

Warranty: 5 Years

Note: Warranty excludes Ceramic Elements 12 months
