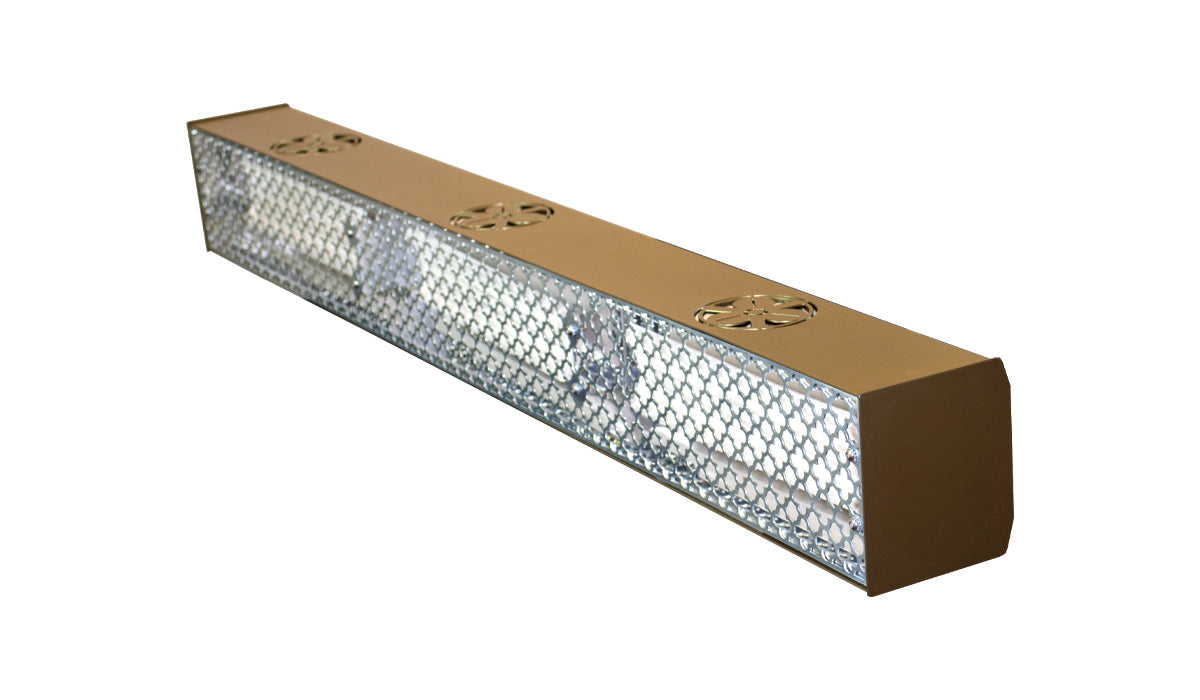

Halo Horizon 2.4kW – 3.2kW Infrared Heater

Description

The Herschel Halo Horizon is the latest addition to our zero light heritage range, alongside our revolutionary chandelier Halo heater, and is designed specially for heating churches and heritage buildings. Utilising our innovative far infrared heating elements, in three powerful sizes, Horizon has been beautifully crafted with British steel and aerospace-grade aluminium to discreetly fit the heritage aesthetic and can be both wall-mounted (horizontally and vertically) or ceiling suspended. To ensure the Herschel Heritage range incorporates the very best components and finishings, the grill has been nickel-plated to deliver longevity and protection against corrosion.

Providing a discreet solution for side aisles, chancels and lower-ceilinged spaces such as choir galleries, Horizon provides fast warm-up times and is ideal for supplementing Halo in larger churches or to warm larger heritage buildings where the Halo is not an option. Horizon emits the gentle warmth of radiant technology to gently and safely warm people whilst protecting historic interiors.

With bespoke, decorative finishes and a choice of colours available, Horizon delivers an effective and cost-efficient electric heating solution that can be powered by renewables to reduce carbon emissions and help deliver the routemap to net zero. Our Heritage team offer a full specification service including 3D scans and visual representations, where appropriate, using the latest technology.

Halo Horizon is available in 2.4kW, 2.6kW and 3.2kW and should be used in conjunction with the Herschel APX Controller. Herschel provides a range of bespoke APX control options including simple on/off operation to more sophisticated controls, thermostat and remote App control plus motion detection to ensure efficient operation according to your requirements.

The recommended height for installation of the 2.4kW and 2.6kW Horizon is 2.3 – 2.7m, with a heated area of 10 – 14m² and 11 – 15m² respectively. The recommended height for installation of the 3.2kW Horizon is 2.8 – 3.2m, with a heated area of 16 – 21m². These areas are a guideline only and will be impacted by airflow and ambient temperatures. Dependent upon the property age/type, insulation levels and levels of airflow present, the number of heaters required and running times will vary.

Please note this is a Special Order item that is made to order. Please contact Herschel to discuss your Horizon specification and APX controls prior to ordering.

Note: ceiling suspension kit not supplied.

Key Features:

• Zero light heater
• UK manufacture with British made steel
• Ceiling suspension & wall mounting
• Optional bespoke decorative designs
• Available in 3 powers
• Far infrared preserves historic interiors

Technical Specifications

Heater Type: Fixed electric high temperature infrared heater

Surface: British steel with nickel-plated grill

Cable Length: 1.5m

Voltage: 220 - 240V 50 Hz

Protection Class: IP20

Installation: Wall or ceiling mounted

Heating Element: Herschel Kanthal Ceramic Element

Reflector: Mirror Aluminium

Warm-up Time: <10 Minutes

Useful Wavelength: 3 - 10µm

Power Supply: Single Phase 220-240V – Wired as a single circuit

Please contact Herschel Infrared for more information and to discuss how the Horizon heaters can be controlled by our own APX system offering different options of control.

Electromagnetic tolerance: Low emission

Models:

Options available with/without decorative finish. Bespoke decor/colour options also available.

Installation:

Mounting: This unit is for wall or ceiling mounting and must be installed beyond the reach of people due to the high surface temperature. It can be hung using a number of different mechanisms from wires to chains (provided by others) which must be capable of handling 4 x the weight of the heater.

Heated Zones are specified in the individual product specifications above.

The heater will directly warm people and objects within the Heated Zone (note: air movement may reduce area coverage). Within enclosed areas the thermal mass of the building will also be heated within the entire zone. Dependent upon the property age/type, insulation levels, number of heaters used and running times this will increase the ambient temperatures. For larger commercial projects or where different mounting heights are required we would always recommend Herschel carry out a survey or detailed desktop assessment.

The heaters are not suitable for household or similar use. Also, the heaters must not be used or installed in any commercial premises where they can be accidentally touched.

Quality & Safety

Certifications

EU/ UK Electrical Safety: For Commercial Use Only

Restriction of Hazardous Substances (RoHS): IEC62321

Ecodesign Compliance: ErP Regulation (EU) 2015/1188 and Supplement (EU) 2016/2282 (Lot 20) when using Herschel Controls

Warranty: 5 Years

Note: Warranty excluding Ceramic Elements 12 months plus any cost of installation or consequential losses.
