Inspire – White Frameless Infrared Panel Heater
Inspire – White Frameless Infrared Panel Heater
Model | Wattage | Dimensions | Heats M3 |
---|---|---|---|
CL-200 | 250W | 30 x 60cm | 3 - 5 |
CL-300 | 350W | 30 x 90cm | 4 - 7 |
CL-400 | 420W | 60 x 60cm | 5 - 8 |
CL-500 | 550W | 60 x 80cm | 7 - 12 |
CL-750 | 750W | 70 x 90cm | 11 - 18 |
CL-750L | 820W | 40 x 170cm | 11 - 18 |
CL-900 | 900W | 80 x 100cm | 13 - 22 |
CL-1200 | 1200W | 80 x 120cm | 17 - 29 |
CL-1200L | 1250W | 60 x 160cm | 17 - 29 |
Description

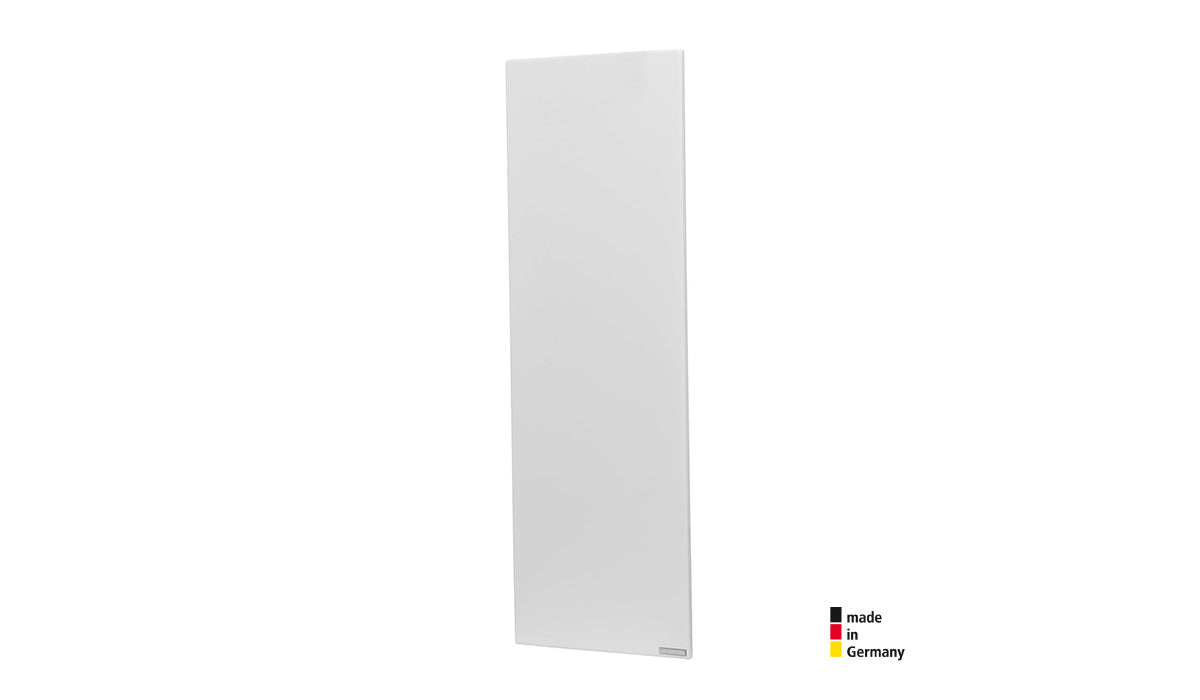

Our Inspire White infrared panel heater is made in Germany to exacting standards using the highest quality components available. This is a frameless panel made from powder coated aluminium emitting surface and incorporates our highly efficient long life heating element. All panels are designed and built to last a lifetime and each panel is quality inspected and fully tested as part of ISO9001 quality control procedures. Complete with a 10 year warranty and easy fit brackets, panels are optimised for UK voltage and designed to produce the optimum output of far infrared. Panels can be either ceiling or wall mounted. The “L” models 820w and 1250w panels are long and narrow and specially designed to fit on dwarf walls in conservatories.
Inspire is one of the longest running ranges in the market and cannot be beaten for quality. Customers who purchase Inspire choose this range because they want a tried and tested heating system which lasts a lifetime, is maintenance free and looks great in any setting. The range is tested by TUV Rhineland to GS electrical and product safety standards.
Inspire panels are designed for professional installation only and do not have any inbuilt receivers. They must be controlled with our Herschel IQ controllers and there are a number of options (sold separately) to choose between. The panels are directly wired either to our MD2 hard wired thermostat. MKS, MKW or to our R2 receiver. Full App control is available when used with all options. Select your thermostat options below.
The heated areas are a guide only and assume a medium to well insulated space with an average floor to ceiling height of 2.40M. If room heights are greater or there are other building factors to consider then please use our Calculate Your Requirements page, Contact Herschel, or contact your dealer directly so that a more detailed assessment can be carried out.
Key Features:
- Made to order in Germany
- Luxury finish infrared heater
- Highest quality German components
- White finish
- Wall or ceiling mount
- Use with Herschel IQ controls
Technical Specifications
Heater Type: Fixed electric low temperature infrared heater
Surface: Aluminium, powder coated
Colour: White, RAL Code: 9016
Rear Case: Sheet steel, powder coated, mounting points
Surface Temperature: 95 - 105°C
Cable Length: 1.8m
Plug: No Plug
Voltage: 230V 50Hz
Protection Class: IP54
Installation: Wall or ceiling mounted
Warm-up Time: 7 Minutes
Useful Wavelength: 5 - 12µm
Quality & Safety
Certifications
TÜV GS (TÜV SÜD Product Service GmbH)
EU/ UK Electrical Safety: IEC60335-1; 60335-2-30; EN62233
Electromagnetic Certification: EN55014-1&2; EN60001-3-2&3
Restriction of Hazardous Substances (RoHS): IEC62321
Ecodesign Compliance: ErP Regulation (EU) 2015/1188 and Supplement (EU) 2016/2282 (Lot 20) when using Herschel Controls
Warranty: 10 Years
Note: Made in Germany, typically 1 – 2 week delivery
