Herschel
Krystal Black 600 – 1000W
Krystal Black 600 – 1000W
Model | Wattage | Dimensions | Heats M3 |
---|---|---|---|
Krystal-600-B | 600W | 27 x 57cm | 11 - 13 |
Krystal-1000-B | 1000W | 27 x 57cm | 14 - 23 |
Description

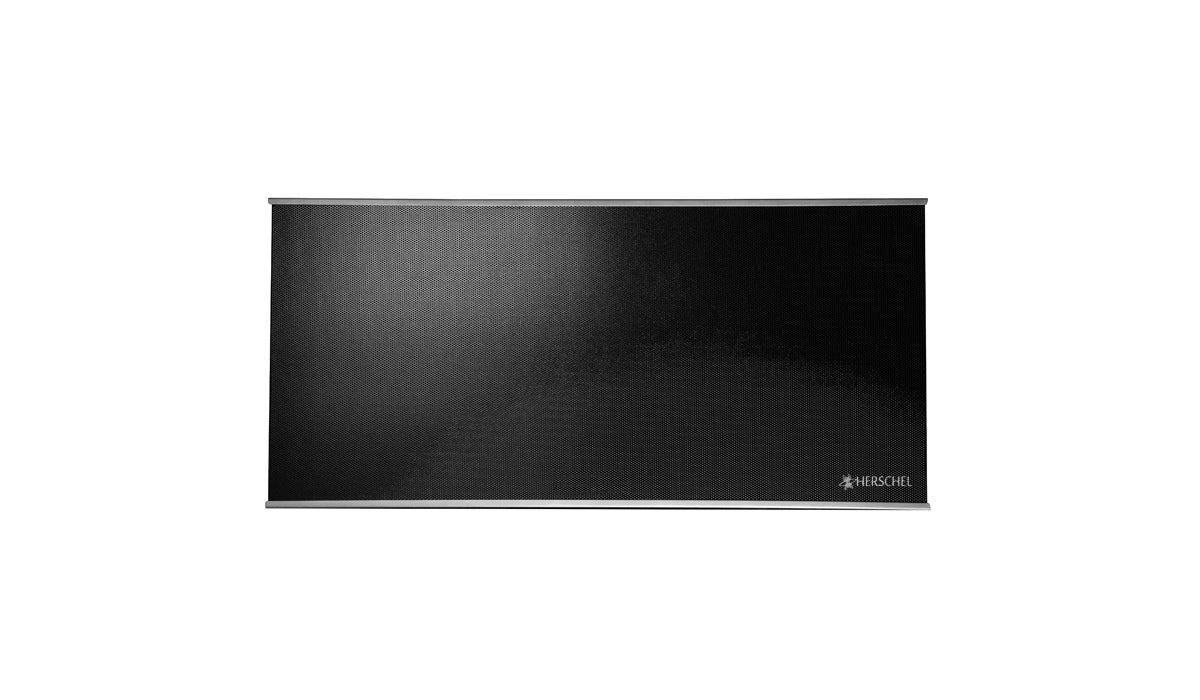

Unique in the market, the Herschel Krystal infrared panel heater is revolutionary in design, efficiency, performance and comfort. Constructed using specialised microcrystal ceramic glass and Herschel’s innovative COSIX© Cell infrared heating technology, Krystal offers a highly attractive, sleek and compact solution that can be neatly recessed into ceilings to ensure a contemporary, seamless finish for any interior.
At less than a quarter of the size of most far infrared panel heaters but offering similar power output, Krystal’s big advantages are in its space-saving and fast warm-up times. The Krystal Black glass panel is available in either 600W or 1000W in a 27 x 57cm unit. This is also available in white.

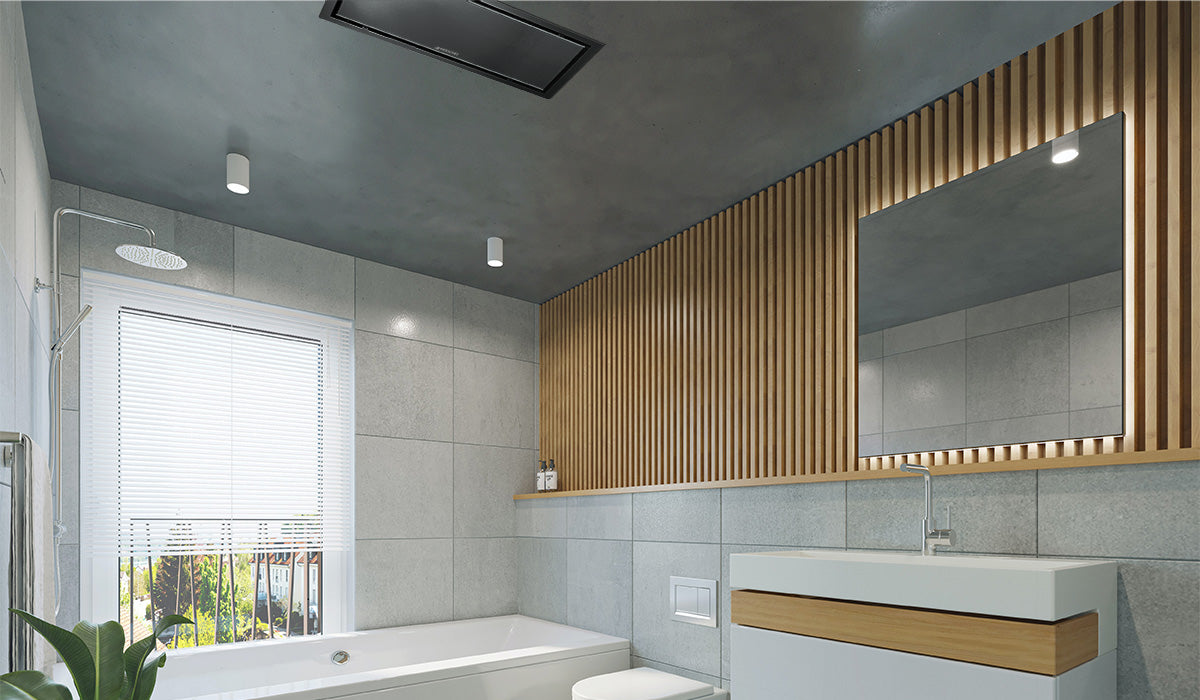

The high temperature Krystal heater provides fast warm-ups, ideal for comfortably heating both domestic properties or commercial heating applications. The Krystal is designed for ceiling mounting in rooms and can also be wall mounted in large spaces.

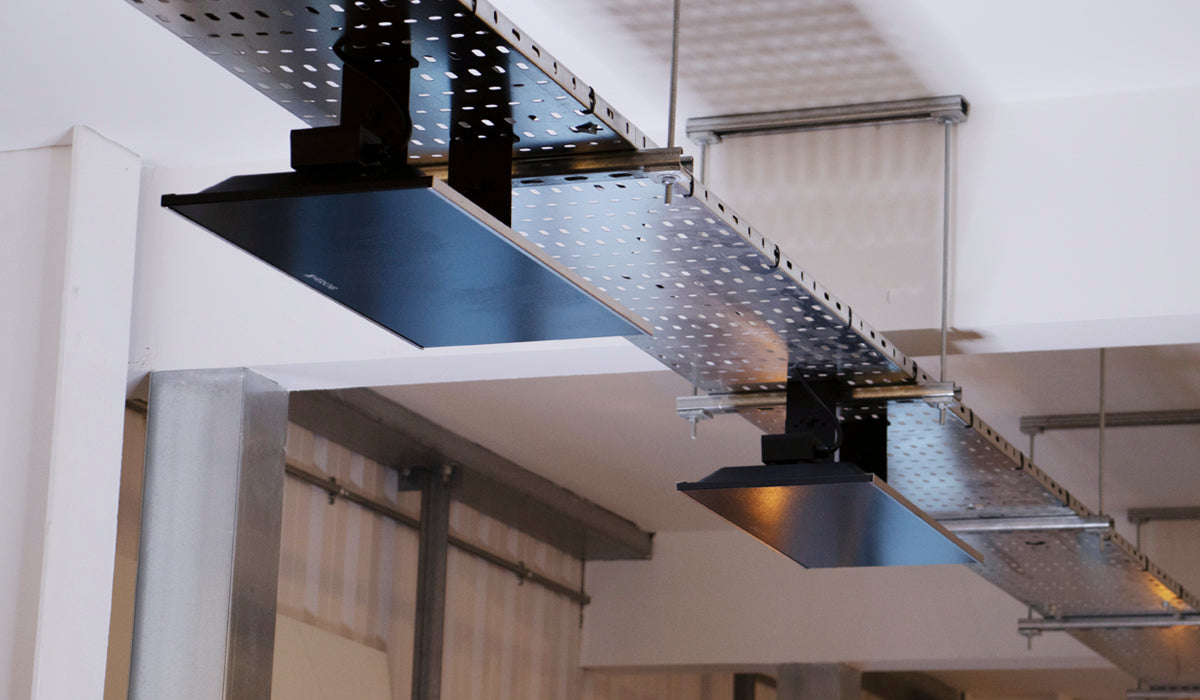

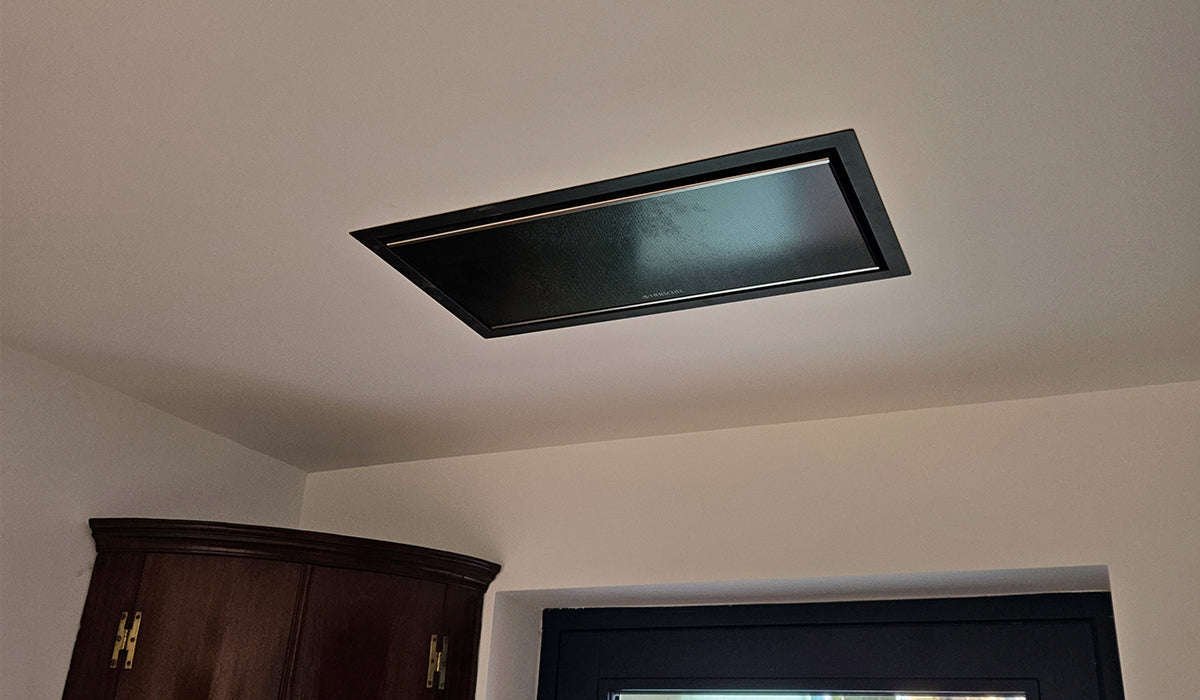

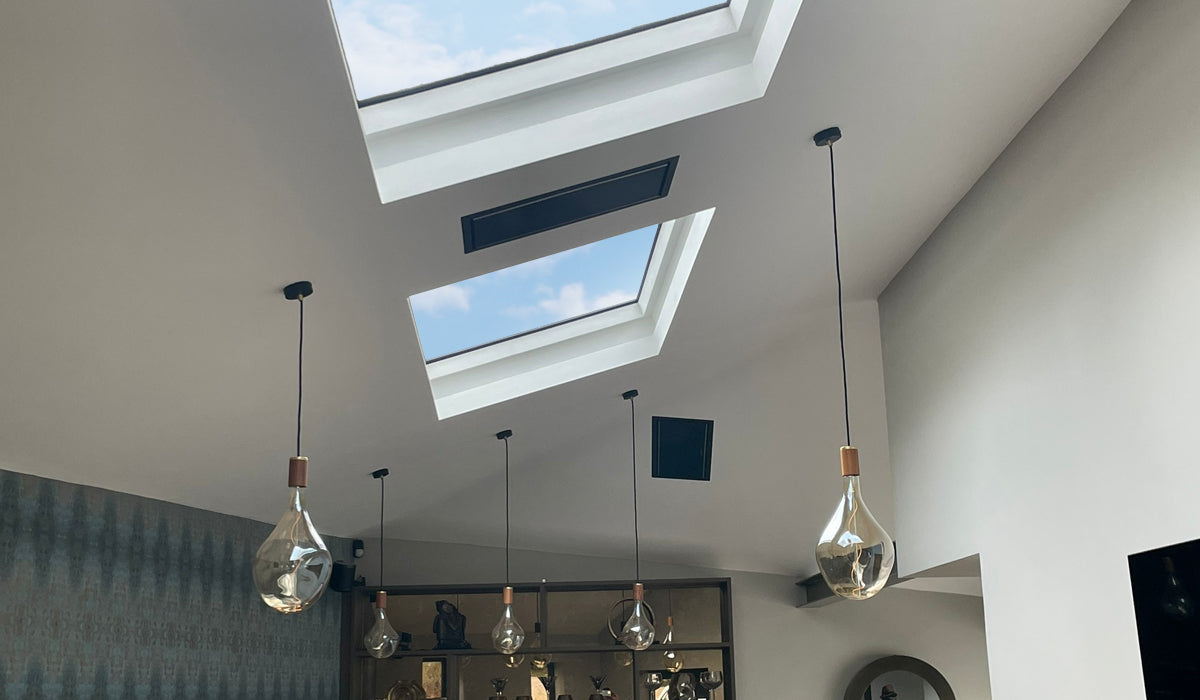

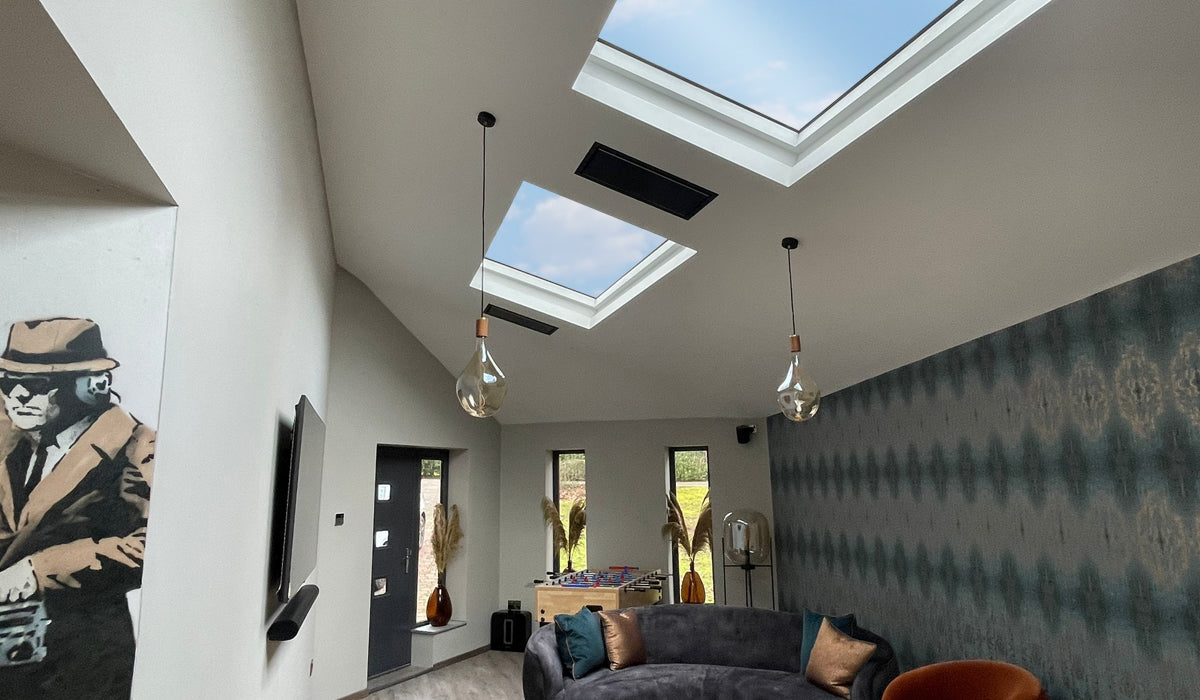

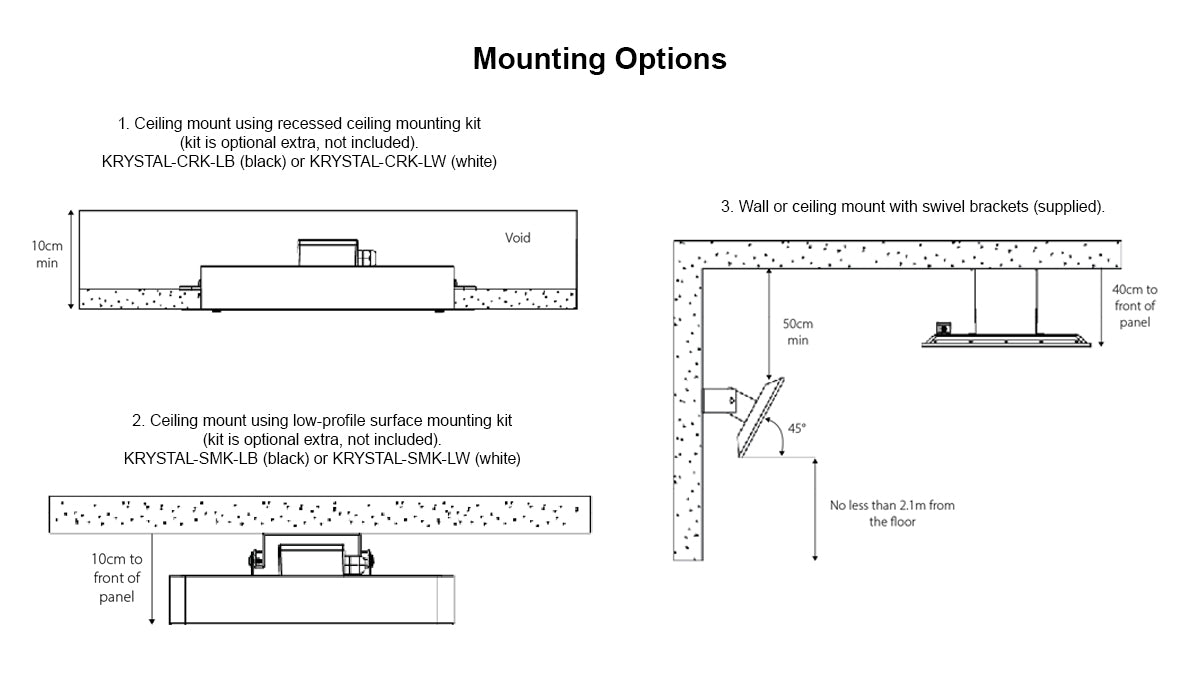

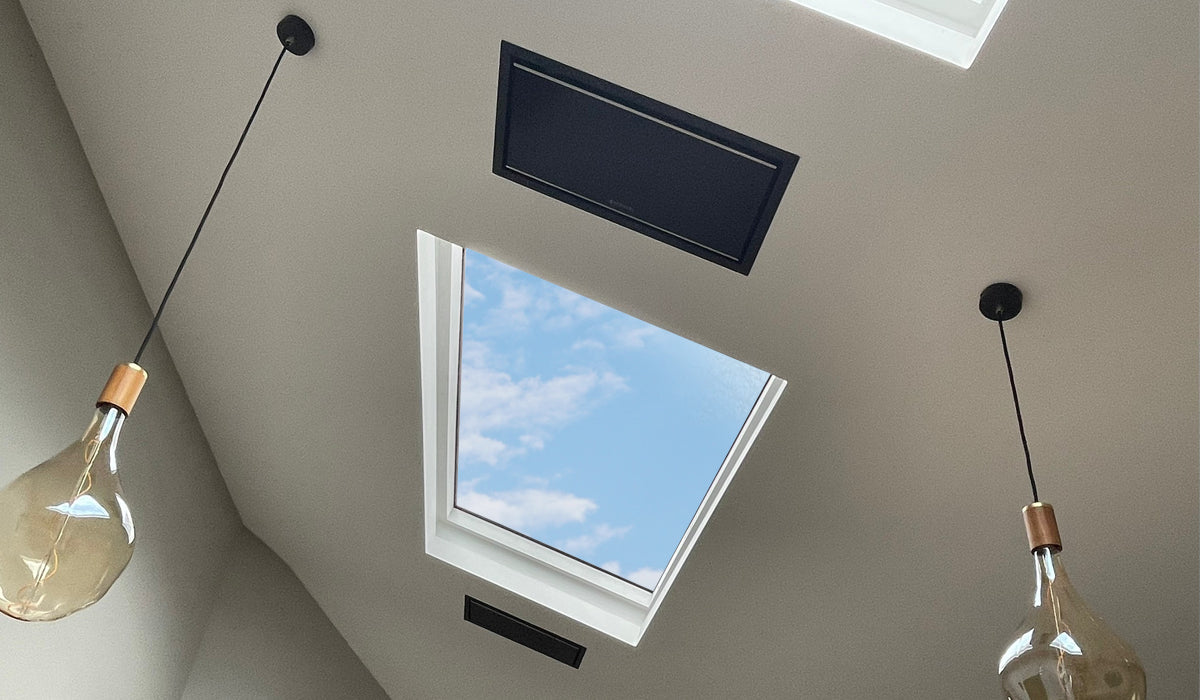

For a designer flush finish, the Krystal recessed ceiling mounting kit can be purchased (separately) allowing Krystal to be recessed into plasterboard ceilings that have a void. For solid ceilings, the low profile surface mounting kit allows Krystal to be mounted discreetly onto the ceiling. The surface mounting kit is also an optional extra. (Wall mounting swivel brackets are supplied, as standard). The mounting options can be seen in the datasheet and gallery image.
Control of the Herschel Krystal infrared panel heater is via hard wiring to one of Herschel’s iQ range of thermostats (purchased separately). Due to its fast warm-up times, Krystal also works exceptionally well with Herschel’s PIR sensor, so you can fine-tune your energy use to set infrequently used rooms to a lower temperature and boost the power only when you’re in them.
Krystal has a high surface temperature and must be installed out of reach. Minimum ceiling heights of 2.4m are advised for ceiling mounting. Minimum 2.1m mounting height is required for wall mounting.
Professional installation by an electrician is required.
Please consider your ceiling mounting preference when ordering. Note swivel brackets are supplied, the alternative mounting brackets require additional kits to be purchased.
Key features:
- Unique in the market
- Specialised microcrystal ceramic glass
- Fast-acting, quick warm up
- Sleek, flush ceiling-recess install available
- Herschel COSIX© Cell technology
Technical Specifications
Heater Type: Fixed electric high temperature infrared heater
Surface: Microcrystal Glass
Colour: Black
Rear Case: Steel
Surface Temperature: 280 - 350°C
Cable Length: 1.9m
Plug: No Plug
Voltage: 220 - 240V 50 Hz
Protection Class: IP44
Installation: Wall or ceiling mounted
Heating Element: Herschel COSIX © Cell Technology
Warm-up Time: <10 Minutes
Useful Wavelength: 3 - 10µm
Quality & Safety
Certifications
EU/ UK Electrical Safety: IEC60335-1; 60335-2-30; EN62233
AUS/ NZ Electrical Safety: AS/NZS 60335-1; 60335-2-30
Electromagnetic Certification: EN55014-1&2; EN60001-3-2&3
Restriction of Hazardous Substances (RoHS): IEC62321
Ecodesign Compliance: ErP Regulation (EU) 2015/1188 and Supplement (EU) 2016/2282 (Lot 20) when using Herschel Controls
Warranty: 5 Years
