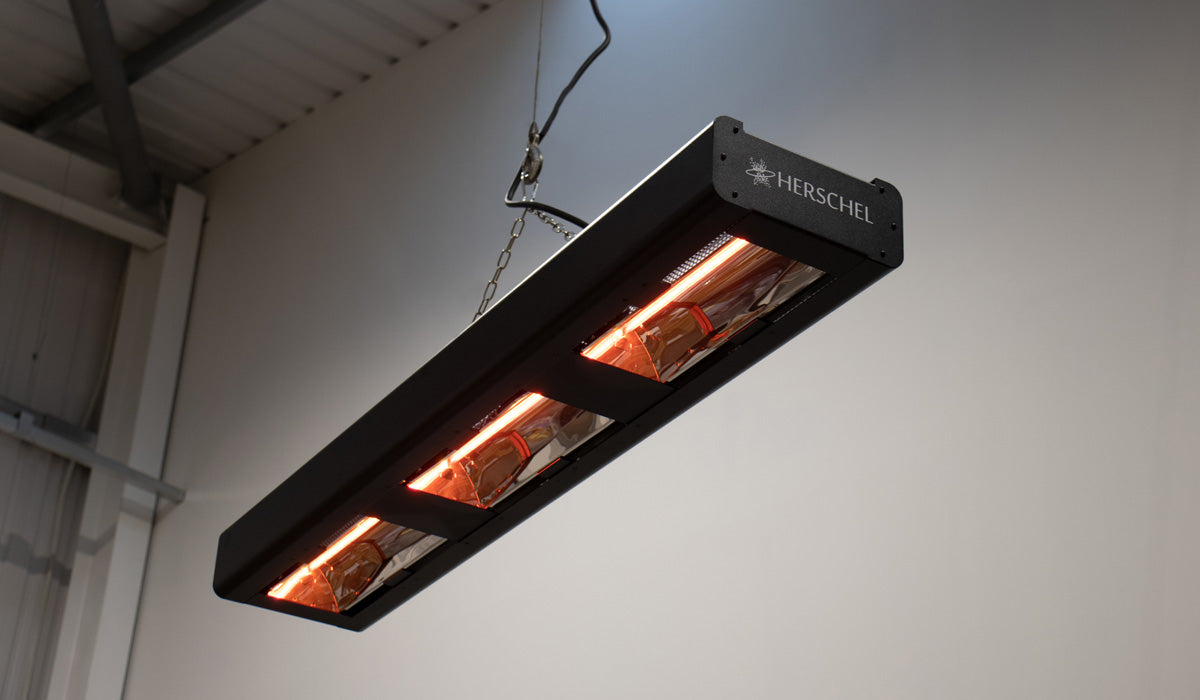

Vulcan 6 -12 kW Warehouse Heater

Description

Herschel’s Vulcan 6 – 12kW Infrared workshop heaters are designed to heat large spaces like workshops and warehouses. They offer considerable advantages to operators seeking alternatives to gas or convection-based heating systems:

The Vulcan provides for higher installation heights, better heat production in colder / higher altitude locations and a larger heated area. With a choice of wall or ceiling mounting, Vulcan offers a powerful heating option for industrial applications. Vulcan can be:

For switching the heaters on, use a 3-phase thyristor with zero cross. Herschel also offer specialised PLC controls where multiple heaters are installed (please contact Herschel for details).

Always refer to the installation instructions before installing.

Wiring suspension and ceiling fittings must be capable of holding 4x the heater weight.

The Vulcan 6- 12 kW infrared workshop heater is ideal for industrial units wishing to avoid using fully convection-based or gas-based blower systems.

Always refer to Herschel for an accurate assessment of your heating requirements.

Installation

The Vulcan can be installed pointing vertically downwards from heights upwards of 3.5m above the ground (refer to instructions).

The Vulcan ‘L’ models can also be wall-mounted at 3.5m or above and angled downwards between 20 – 30˚ (refer to instructions).

380 – 415V 3-phase power must be used to power the Vulcan Heaters and installation must be performed by a commercial electrician. Do not exceed 415V as this will significantly shorten the operating life of the lamps.

The Vulcan Industrial Heaters have no built-in controls. Please discuss control options with Herschel during the estimating phase of your heating project.

Purchase price includes the first set of lamps.

Key Features:

• Wall or ceiling mount
• High power Tungsten-Halogen lamps
• Heats large areas
• Long life components
• Professional installation required
• Requires 3 Phase 380 – 415V

Technical Specifications

Heater Type: Visibly glowing radiant heater

Surface: Aluminium

Colour: Black

Cable Length: 2m

Plug: No Plug

Voltage: 380 - 415V

Power Supply: 3 Phase

Protection Class: IP65

Installation: Wall or ceiling mounted

Heating Element: 3 or 6 Low Glare Tungsten-Halogen Lamps

Reflector: Mirror Aluminium

Warm-up Time: 5 - 10 Seconds

Useful Wavelength: 1µm

Quality & Safety

Certifications

EU/ UK Electrical Safety: IEC60335-1; 60335-2-30; EN62233

Electromagnetic Certification: EN55014-1&2; EN60001-3-2&3

Restriction of Hazardous Substances (RoHS): IEC62321

Warranty: 2 Years

Note: Warranty excludes lamps. This unit is not suitable for household or similar use.
